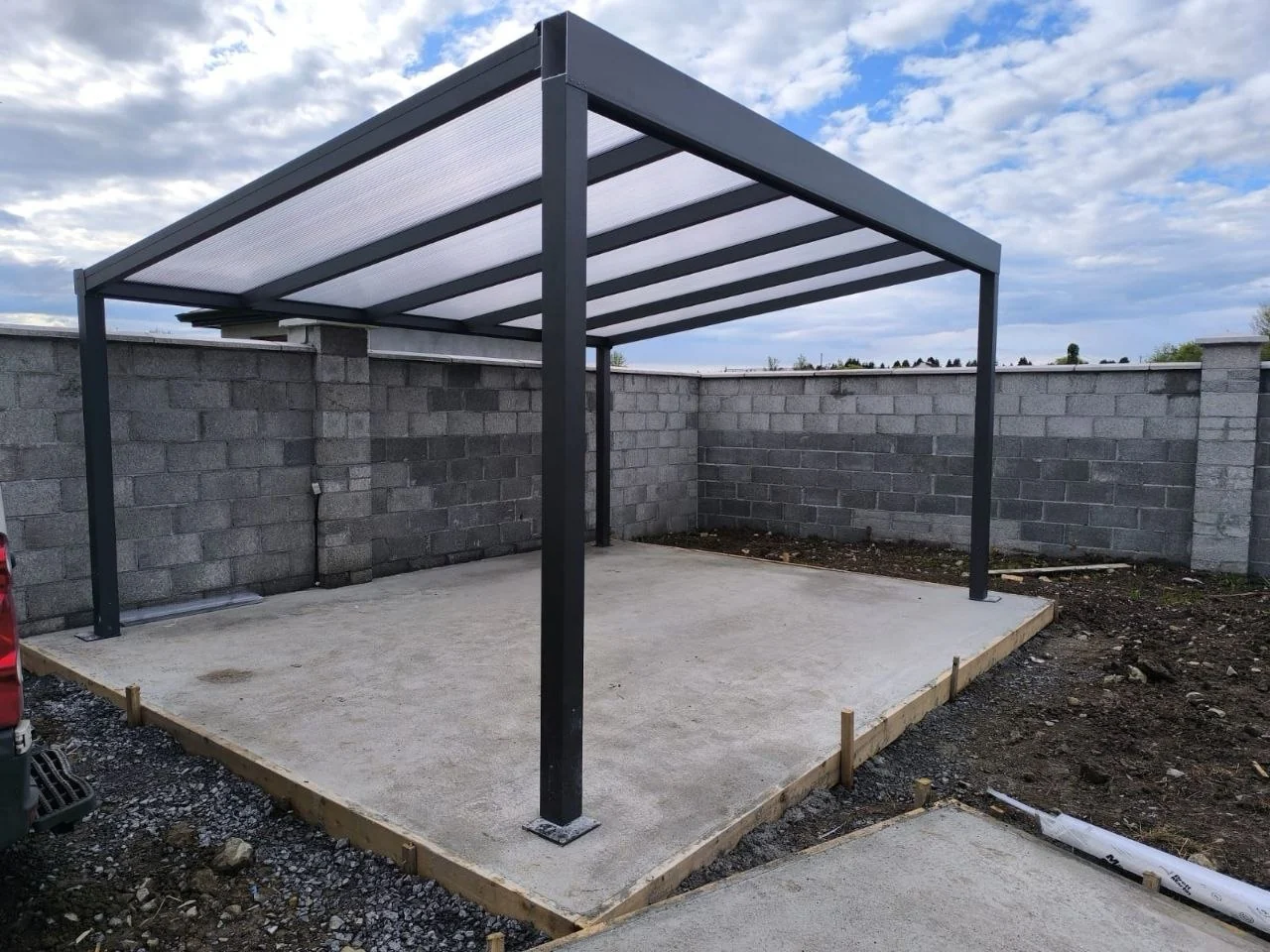

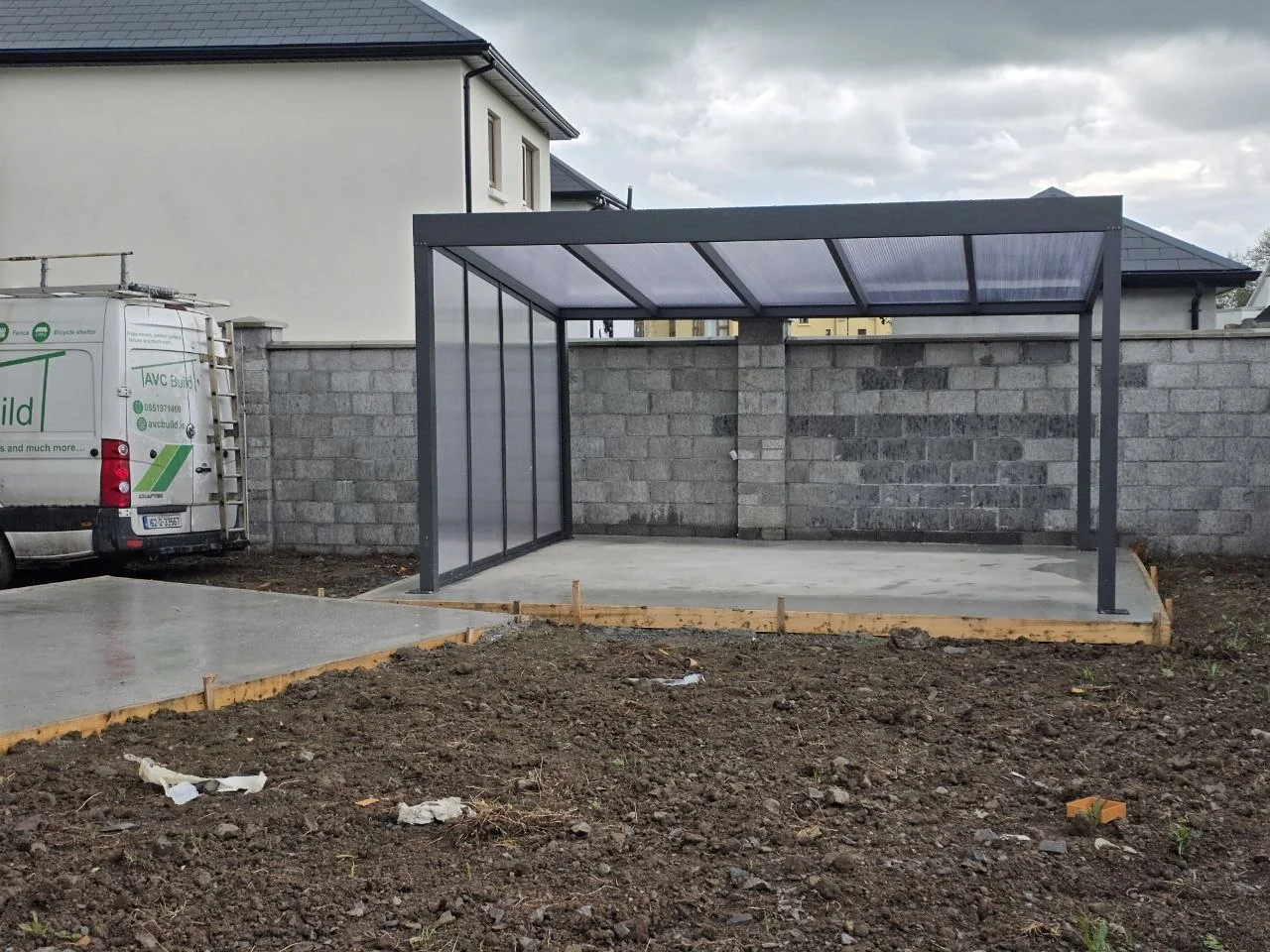

AVC Build designed, supplied, delivered and professionally installed this made-to-measure freestanding aluminium pergola at a residential property in Roscommon. The structure combines an opal polycarbonate roof with a polycarbonate side wall to create a more protected outdoor area without attaching the pergola to the house.
The anthracite aluminium frame is independently supported, while the additional side wall provides greater protection from exposed weather. The remaining sides stay open, maintaining easy access and a direct connection with the surrounding outdoor space.
Project Details
- Project: Freestanding aluminium pergola
- Location: Roscommon
- Property: Residential home
- Configuration: Made-to-measure freestanding structure
- Roof: Fixed opal / milk polycarbonate roof
- Frame colour: Anthracite
- Side wall: Polycarbonate wall on one side
- Other sides: Open
- Drainage: Integrated rainwater drainage system
- Additional equipment: None
- Base: Prepared by the client
- Fixing: U-shaped profile fixed to the prepared base before the pergola structure was secured
- Purpose: To create a sheltered outdoor area with additional protection from exposed wind and rain
- AVC Build scope: Design, made-to-measure supply, delivery and professional installation
- Warranty: 10-year warranty
Freestanding Patio Shelter with Additional Side Protection
The main requirement for this Roscommon project was to create a permanent sheltered outdoor area without relying on the house wall as a structural support. A freestanding aluminium pergola allowed the structure to be positioned independently within the available space.

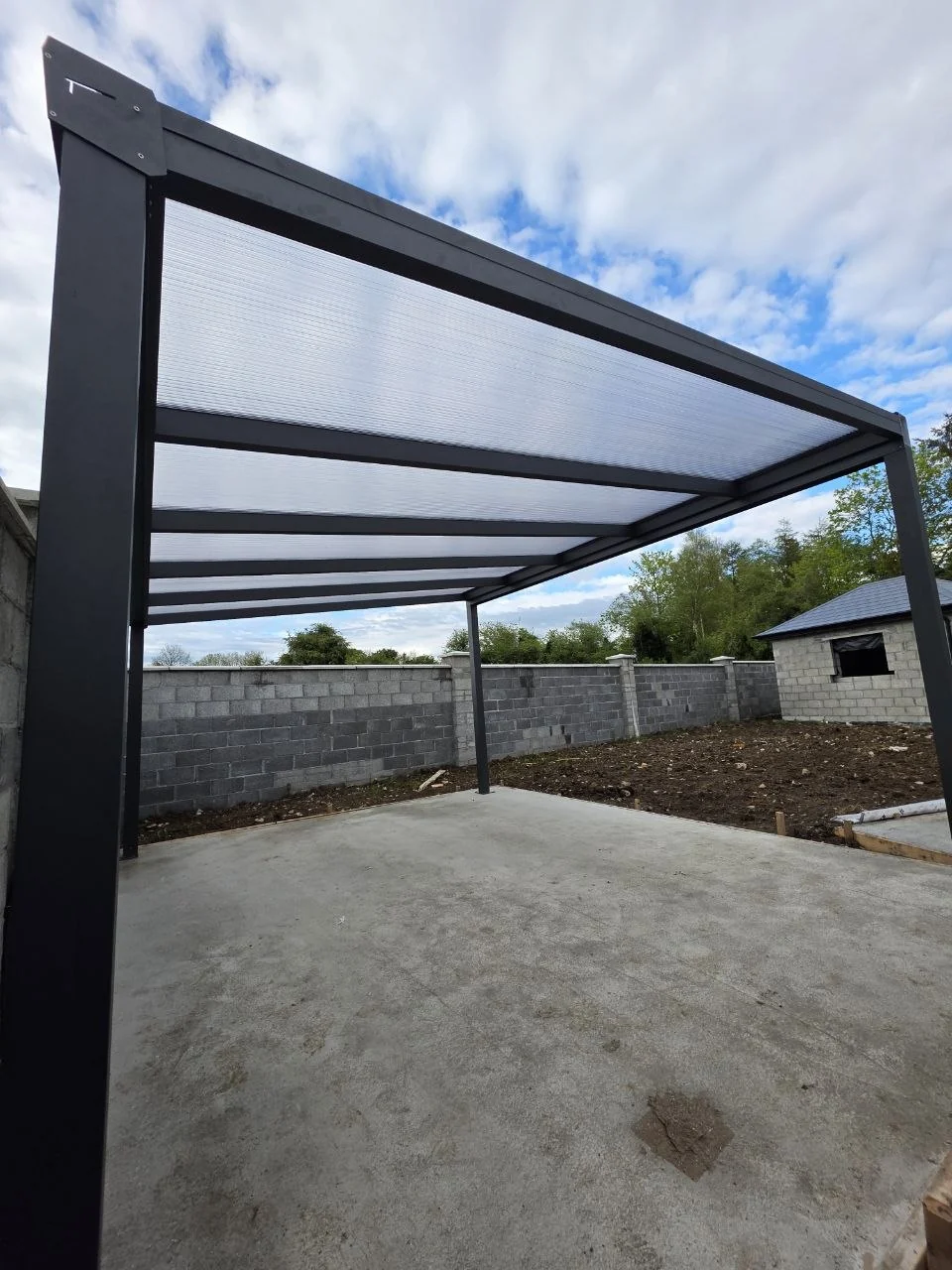

An opal, or milk, polycarbonate roof was selected for the fixed overhead cover. It provides protection from rainfall while allowing diffused daylight through the roof rather than creating a completely dark covered area.

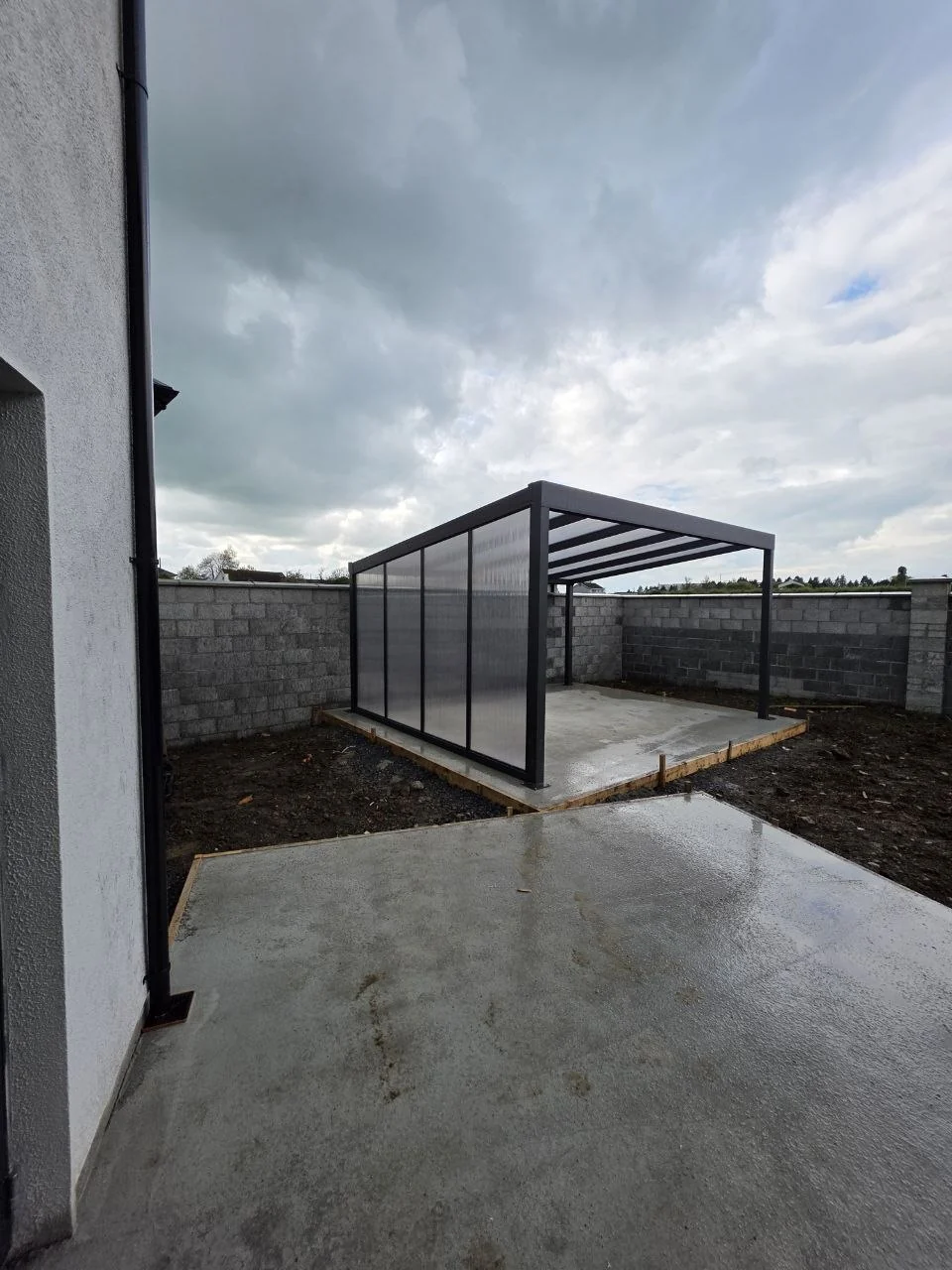

One side of the pergola was fitted with a polycarbonate wall to provide additional protection from exposed weather. This was particularly useful for reducing the effect of wind and wind-driven rain from that side while keeping the other sides open.

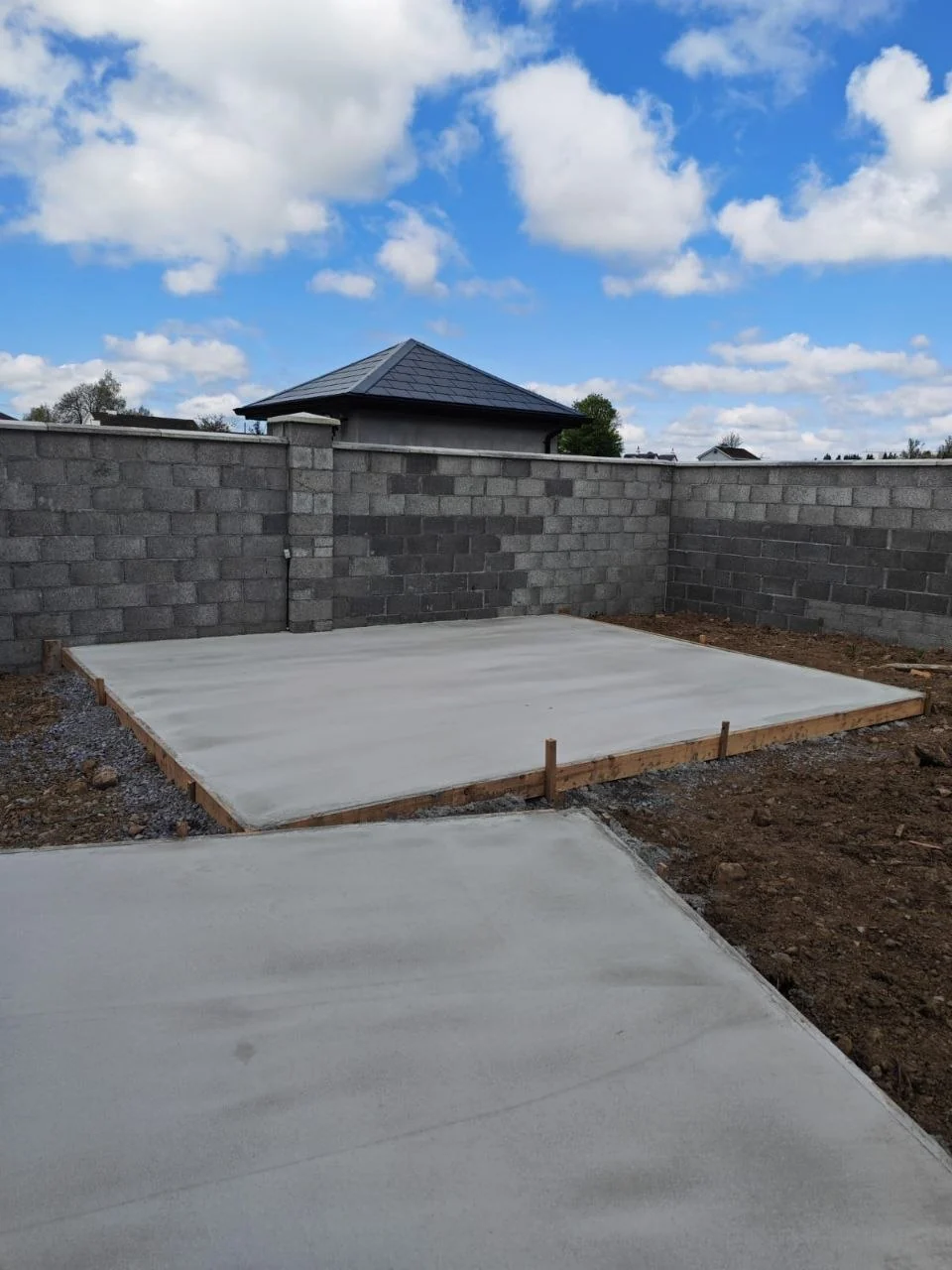

The freestanding structure required a secure fixing arrangement at the base. A U-shaped profile was fixed to the client-prepared base before the aluminium pergola was attached, providing a defined connection between the finished base and the structure.
Rainwater is managed through the drainage system integrated into the pergola. No additional lighting, glazing systems or other equipment were installed as part of this project.
